冲床空气减震器

冲床空气减震器

日期:2018-5-28 浏览量:372

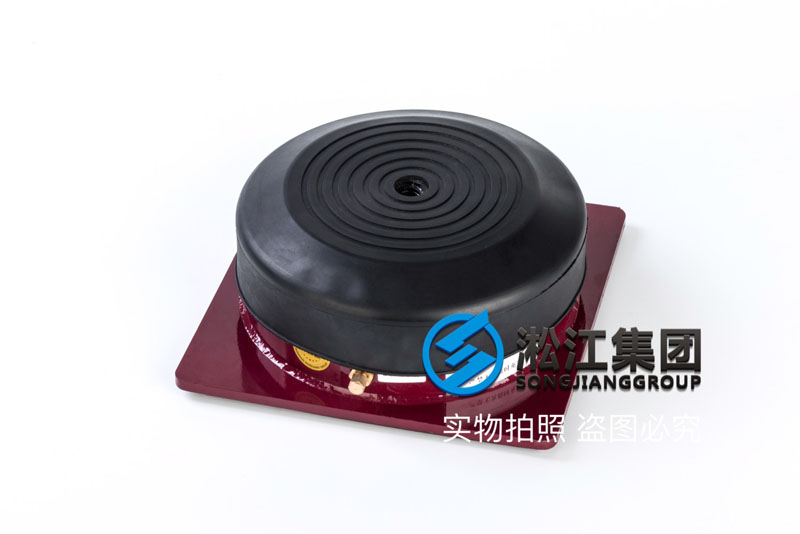

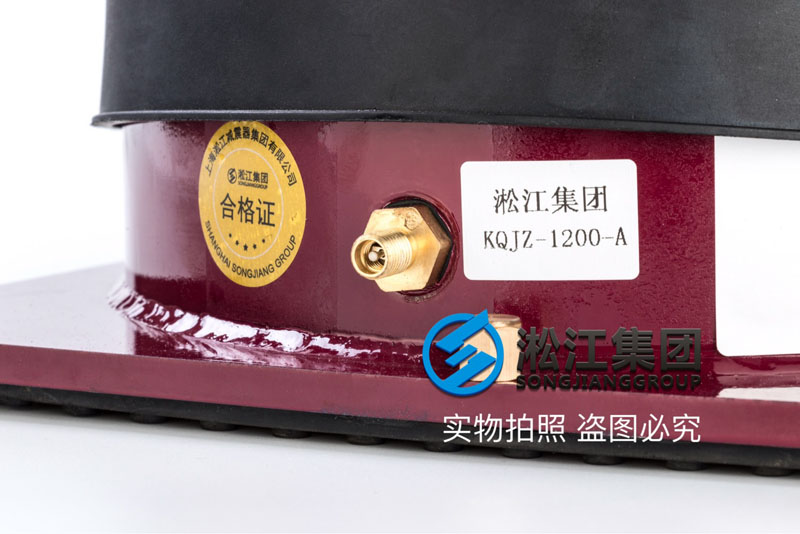

KQJZ-1200-A冲床空气减震器
Punch air shock absorber

上海淞江减震器集团有限公司官方网站为您介绍:KQJZ-1200-A冲床空气减震器信息,淞江集团为冲床设备推荐*款专用的空气减震器产品,是冲床震动的*吸收者,众多冲床安装使用后都被空气减震器的优质效果而满意。
Shanghai Songjiang absorber group limited official website introduces for you: KQJZ-1200-A punch air shock absorber, Songjiang group for air damper press equipment recommended a special product, is the perfect vibration absorption of punch, punch after the installation and use are numerous high quality and satisfactory effect of air shock absorber.

KQJZ-1200-A冲床空气减震器 Punch air shock absorber

KQJZ-1200-A冲床空气减震器 Punch air shock absorber

KQJZ-1200-A冲床空气减震器 Punch air shock absorber

KQJZ-1200-A冲床空气减震器 Punch air shock absorber

KQJZ-1200-A冲床空气减震器 Punch air shock absorber

产品介绍:
气压式防振装置,符合JISD-4101气垫耐压试验标准
自然频率3Hz~5Hz,.大使用压力4.5 Kg/cm^2。
本体采用多层防锈烤漆。
本体采用Neoprene Rubber,*体成型气密性*。
防振效果.高,*般设备效率可达97%以上。
荷重范围 50~3500Kg。
可加装防油帽,防止*般油污腐蚀。
使用场合:冷水机组、冲床、泵组。

Product introduction:
Air pressure anti vibration device conforms to JISD-4101 air cushion pressure test standard
The natural frequency is 3Hz~5Hz, and the maximum use pressure is 4.5 Kg/cm^2.
Multi layer antirust paint is used in the body.
The body adopts Neoprene Rubber, which has good air tightness in one.
The anti vibration effect is very high, and the efficiency of the general equipment can be over 97%.
The range of load is 50~3500Kg.
Oil proof cap can be added to prevent oil corrosion.
Use: chiller, punch, pump group.

KQJZ型空气减震器外形尺寸和其他型号表详见:KQJZ型空气减震器安装说明
KQJZ air shock absorber shape size and other types of table details

以上KQJZ-1200-A冲床空气减震器信息来源于上海淞江减震器集团有限公司官方网站减震器产品中心,淞江集团生产的空气减震器可以将冲床的震动和噪音吸收90%,是目前全球减震效果.好的减震器产品,淞江集团生产的所有空气减震器产品橡胶全部采用东风1#天然橡胶,含胶量高达85%,具有良好的密封性和长期使用寿命,维护简单,是众多高端环境的.*选择,例如:星*酒店、高端写字楼、楼层设备等对减震效果要求.高的环境。
KQJZ-1200-A above the water chiller air damper on information from Shanghai Songjiang absorber group limited official website shock absorber product center, air damper Songjiang Group production can punch the vibration and noise absorption in 90%, is currently the world's best damping effect of shock absorber products, all the air shock absorber rubber products Songjiang group the production of all the Dongfeng 1# natural rubber, rubber content is as high as 85%, with good sealing and long service life, simple maintenance, is the only option, many high-end environment such as hotels, office buildings, floors high end equipment requirements of high damping effect on the environment.


使用案例:上海舜元产业园重建扩建项目
Use case
